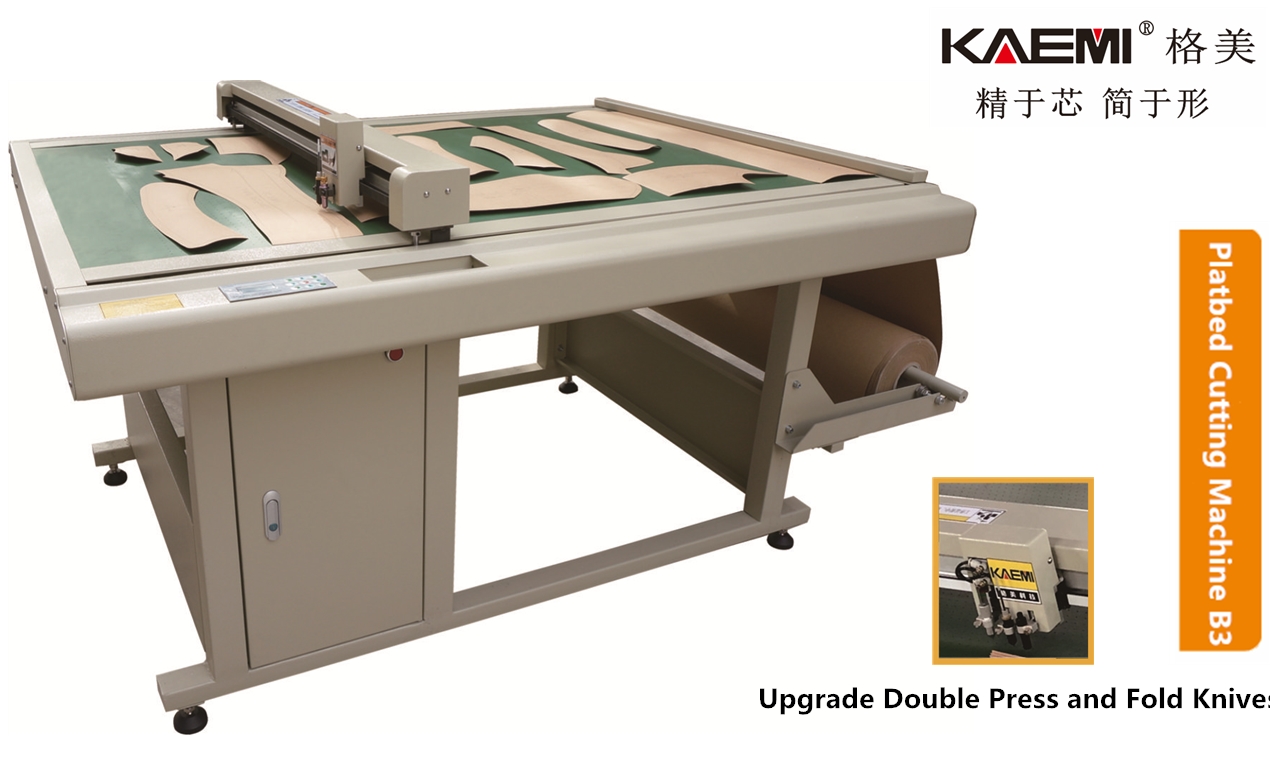

B3 Flatbed Cutting Machine
Hit：2762 Add times：2018-08-13
New Frame Design Ensures Machine Stablility When Runs at High Speed Optimized Circuit Layout; More Compact Electrical; Better Heat Dissipation; More Reasonable
Cutting Starting Points and Cutting Sequence Display System
System Updated to the Latest Version. Optimized Dashed Lines, Arcs, Machines Runs More Smoothly
Unique Error Data Identification Function
|
GM-1209B3
|
GM-1509P3
|
GM-1510B3
|
GM-1512B3
|
Cutting Window
(Fabric Scope)
|
1200*900mm
|
1500*900mm
|
1500*1000mm
|
1500*1200mm
|
|
1600*1280*800
|
1900*1280*800
|
1900*1380*800
|
1900*1580*800
|
Maximum Cutting Thickness
White Paper, Kraft, Plastic Board, Fiberboard, etc
Material/Paper Loading Method
Ball Pen, Rollerball Pen, Gel Pen/Tungsten Steel Blade
USB/RJ45 Ethernet; Shared Folder Print in LAN
HPGL(Compatible with Domestic and Interntional CAD Online)
9 Keys and LED Display(Chinese and English Switch)
High Performance 3 Phrase Step-motor
Temperature:-30~50℃ or -22~122℉; Humidity: 10%--95% RH
Garment, Shoes-Making, Bags, Furniture, Automobile Decoration, Box Cutting, etc
Note: the above parameters are subjected to change without prior notice. If there is any doubt, please call for consultation.
